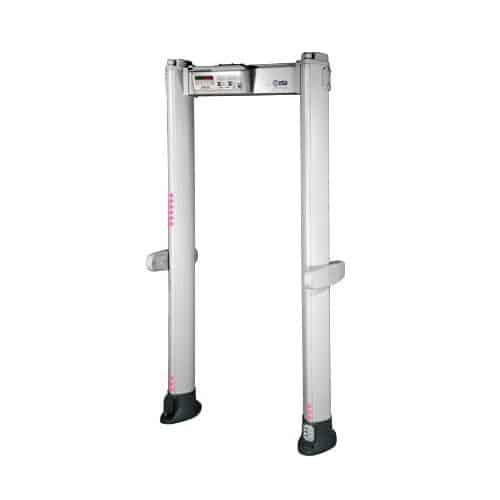

CEIA PMD2 Plus Series Metal Detector

We introduce the CEIA PMD2 Plus Series, the ideal solution for metal detection at security checkpoints for individual screening. This system is one of the most widely used devices in airports, courthouses, government facilities, and major events due to its advanced technology and ability to detect weapons and metal objects with precision and speed, even when concealed within body cavities. Whether you seek a permanent or temporary solution, we offer this device for sale or rental, with comprehensive services ensuring the highest levels of safety.

Technical Specifications and Key Features

• Multi-Zone Detection Technology: Features 60 precise detection zones (20 vertical × 3 horizontal) with Met-Identity technology to identify the type, location, and intensity of metal, providing superior accuracy in detecting ferrous and non-ferrous weapons, including those made from non-magnetic alloys.
• Advanced Discrimination Technology: Utilizes an innovative magnetic scanning system (pioneered by CEIA in 1986) to distinguish harmless personal items, reducing false alarms and achieving up to 5 times higher throughput compared to other systems.
• Superior Detection Quality: Offers high sensitivity and the ability to detect small threats, such as half a razor blade, with a low false alarm rate even at the highest security levels.
• Passageway Dimensions: 720 mm (width) × 2050 mm (height) × 650 mm (depth) in the standard model, with elliptical design options to minimize visual impact and facilitate transport.
• Multiple Operating Programs: Includes up to 50 built-in security programs, with 30 international standards and 20 customizable levels, plus the ability to create and store custom programs in internal memory.
• Chip-Card System: Enables quick and easy security level adjustments without complex programming, with an optional customizable random alarm probability feature.
• User-Friendly Interface: Equipped with a control panel featuring a display screen, visual (LED) and audible indicators, with two-level password protection (user and supervisor) and a security key for the front panel.
• Connectivity and Networking: Supports wireless connectivity via the APSiM2 Plus module (SSL and WPA2 protocols) with an integrated web server, enabling automatic self-diagnostic monitoring, battery level tracking, and flow statistics via smart devices (up to 300 feet in open conditions).
• Dimensions and Weight: External dimensions approximately 2250 mm (height) × 850 mm (width) × 650 mm (depth) for the standard model, with a weight of about 65-75 kg depending on the model.
• Power Consumption: Operates on an automatic power supply (100-240 VAC, 50/60 Hz, less than 50 watts), with an optional backup battery.
• Regulatory Compliance: Certified to European standards for metal detection in the security sector, with a design ensuring minimal environmental interference and reliable operation even in outdoor conditions (up to 25 mph winds with top anchoring points).
