Smart Radar Systems for Traffic Violation Detection
Smart radar systems represent a pivotal step toward developing the infrastructure of modern cities and urban areas. Traffic authorities now rely on advanced technological solutions to reduce risky driving behaviors and enhance overall public safety. ITK.sa offers an integrated suite of AI-powered radar systems that combine high-resolution cameras, advanced radar units, and intelligent image analysis to deliver a reliable solution for detecting violations and efficiently managing traffic flow.
These systems utilize the latest imaging, detection, and automated analysis technologies to provide accurate data that improves compliance with traffic regulations and enhances road quality.
Components of Smart Radar Systems
ITK.sa provides a comprehensive system composed of several harmonized components designed to deliver highly accurate violation detection and reliable data for control centers.

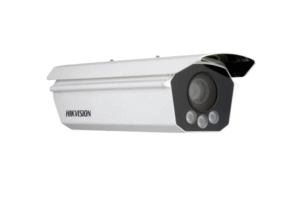

High-Resolution Cameras – 9 MP: Exceptional Clarity in All Conditions
The system features 9-megapixel cameras engineered to capture the finest details, day or night.
Key advantages:
-
Excellent performance in low-light environments with enhanced imaging technologies
-
Automatic license plate recognition (ANPR)
-
Advanced vehicle feature analysis:
-
Vehicle type
-
Vehicle color
-
Manufacturer
-
License plate color
-
-
Ability to capture images of vehicles without license plates
-
Detection of violating behaviors such as:
-
Mobile phone use while driving
-
Not wearing seatbelts
-
Illegal driving in side lanes
-
These capabilities make the system ideal for high-traffic zones.

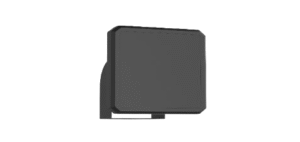

Advanced 24 GHz Radar
The integrated radar unit serves as the backbone of speed detection and vehicle tracking, operating at 24 GHz for stable and precise performance.
Radar capabilities:
-
Measures the speed of up to 128 vehicles simultaneously across 1–8 lanes
-
Wide speed detection range: 10–320 km/h
-
Flexible capture distance: 18–150 meters
-
High accuracy rate of up to 98% using advanced speed measurement techniques
This ensures effective tracking of violating vehicles even in congested areas.

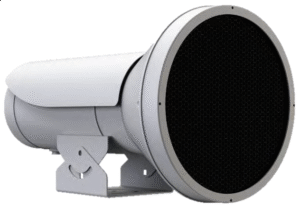

Infrared (IR) Supplementary Lighting
The system includes gas-discharge-based infrared lighting that works in sync with the camera to ensure clear imaging under all lighting conditions.
IR lighting benefits:
-
Automatically activates during image capture
-
Invisible to drivers, preventing distraction
-
Intelligent brightness control to avoid glare
-
Full clarity of license plates and visual features
This significantly enhances night-time image quality without relying on street lighting.

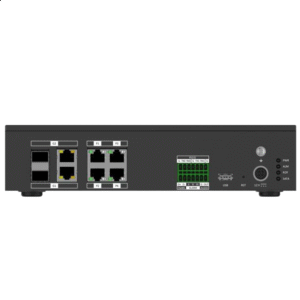

Terminal Server – Advanced Centralized Management
The terminal server is a key element in the radar system, responsible for processing data and managing visual content.
Server functions:
-
Managing and storing high-quality images and videos
-
High-precision video and audio decoding
-
Image processing for vehicle information extraction
-
Sending data across the network to monitoring centers
-
Supporting smart traffic systems, including:
-
Checkpoint systems
-
Intersection violation detection
-
Highway monitoring
-
Traffic management systems
-
The server provides an integrated interface that enables traffic authorities to make swift and accurate decisions.

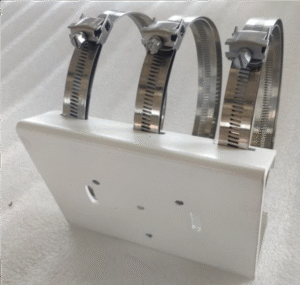

Weather-Resistant Steel Housing
To ensure durability and reliability, the system comes with a housing made from:
-
Galvanized steel plates
-
Industrial surface-spray protective coating
Offering full protection against:
-
Rust
-
Rain
-
High temperatures
-
Dust and environmental factors
This makes it suitable for long-term outdoor use.
Key Features of Smart Radar Systems from ITK.sa
These systems combine robust technology with ease of operation. Their main features include:
-
High accuracy in identifying vehicle types and colors
-
Fast data processing with real-time alerts
-
Compatibility with central traffic systems
-
Rugged design for harsh weather conditions
-
24/7 continuous operation
-
Comprehensive detection of visual and behavioral violations
This makes the systems an ideal choice for traffic authorities seeking to enhance road safety levels.
How Smart Radar Systems Support Smart City Vision
These systems play a major role in building a safer and smarter traffic ecosystem by:
-
Reducing accident rates caused by speeding
-
Increasing seatbelt compliance
-
Limiting mobile phone use while driving
-
Helping reduce congestion through real-time data management
-
Supporting investigations and offender tracking with high-accuracy reports
As cities expand and vehicle numbers increase, such systems become essential—not optional.
Contact ITK.sa for the Best Smart Radar Solutions
If you are looking for state-of-the-art smart radar systems for traffic violation detection with professional installation and ongoing technical support, ITK.sa offers a comprehensive solution combining advanced technology and superior quality.
📞 Contact us now for a quotation or free consultation.
📧 Our team is ready to answer all your questions and provide the most suitable solution for your organization.
